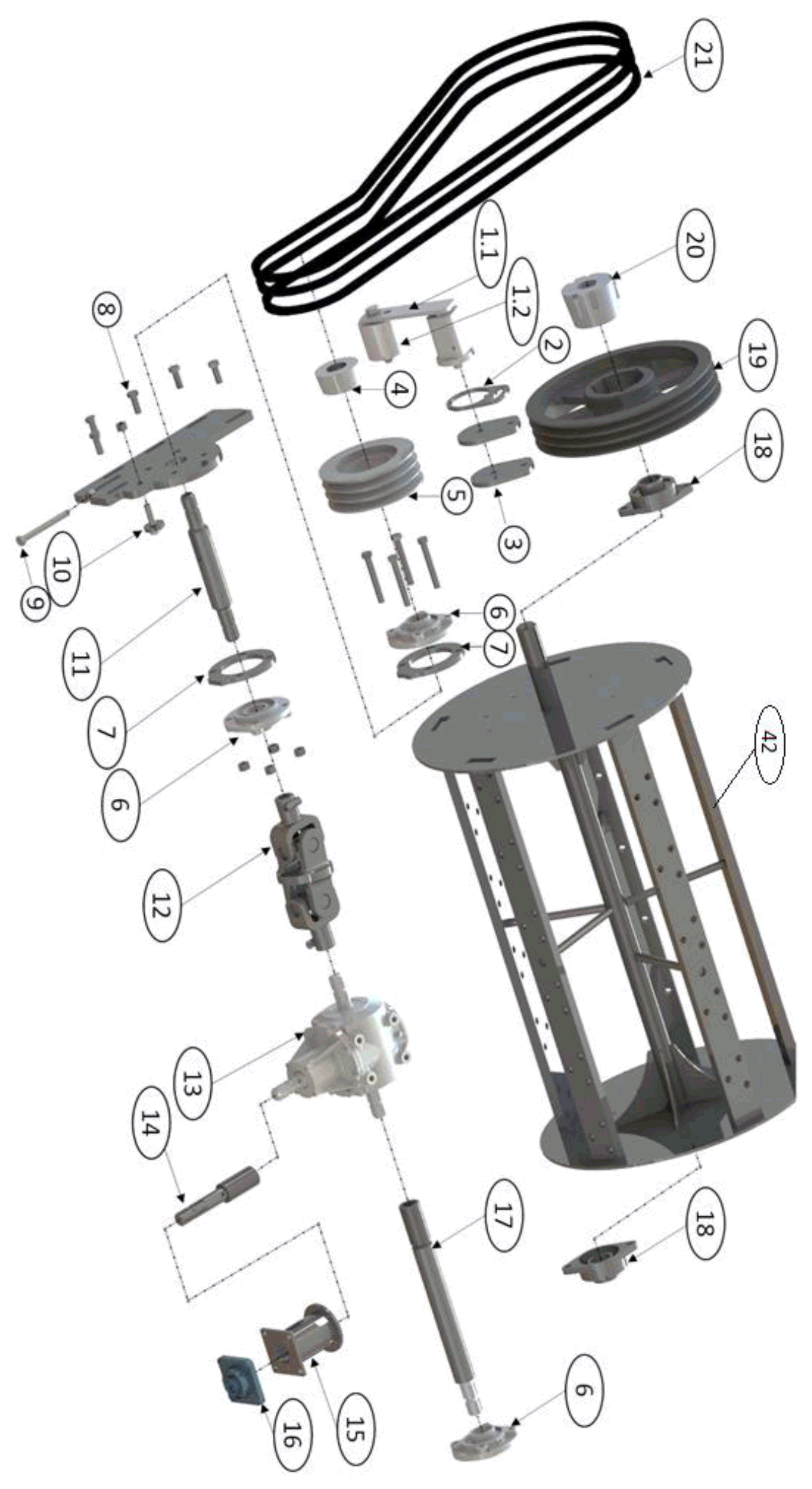

Rysunek złożeniowy
Przeniesienie napędu K-P 5/6/7
Transmission K-P 5/6/7
Przeniesienie napędu K-P 5/6/7K-P 5K-P 6K-P 7
Przeciągnij, aby przesunąć · szczypnij lub +/− aby przybliżyć · dotknij numeru, aby dodać
Numery i nazwy oryginalne producenta. Cen nie publikujemy — wycena na zapytanie.
| Poz | Nr | Nazwa (PL) | Oryg. (DE) | Ilość | |
|---|---|---|---|---|---|
| 1.1 | 10837 | Tensioner (Rosta 38) | 1 | ||
| 1.2 | N0012034 | Tensioner roll complete kit (bearings etc.) | 1 | ||
| 1.2.1 | 10838 | Tension nylon roll | 1 | ||
| 1.2.2 | 12854 | Sleeve | 1 | ||
| 1.2.3 | 22086 | M16 tension locking pin | 1 | ||
| 1.2.4 | 10839 | Tension roll axle | 1 | ||
| 2 | 14645 | Tensioner adjust plate | 1 | ||
| 3 | 20369 | Tensioner spacer | 1 | ||
| 4 | N0000449 | Taper bushing (Taperlock 3020-50) | 1 | ||
| 5 | 10508 | Belt pulley SPC-3-224 | 1 | ||
| 6 | 20071 | Bearing FYC 50 TF | 1 | ||
| 7 | 20077 | Tensioner plate | 1 | ||
| 8 | N0002102 | Bolt M16 | 1 | ||
| 9 | N0002102 | Bolt M16 | 1 | ||
| 10 | 20394 | Adjust plate | 1 | ||
| 11.1 | 12160 | Transverse axle right K-P 4 | 1 | ||
| 11.2 | 16567 | Transverse axle right K-P 5/6 | 1 | ||
| 11.3 | 22239 | Transverse axle right K-P 7 | 1 | ||
| 12 | N0012196 | Transverse joint axle K-P 5/6/7 | 1 | ||
| 13.1 | 10505 | Angle transmission T-278A | 1 | ||
| 13.2 | 20644 | Angle transmission T-290A K-P 7 | 1 | ||
| 14 | 11193 | Gearbox axle L=300 | 1 | ||
| 15 | 23989 | Bearing holder | 1 | ||
| 16 | 10563 | Bearing FYJ 35 TF | 1 | ||
| 17.1 | 24134 | Transverse-axle left K-P 4 | 1 | ||
| 17.2 | 23401 | Transverse-axle left 5/6 | 1 | ||
| 17.3 | 23373 | Transverse-axle left K-P 7 | 1 | ||
| 18 | 13711 | Bearing FYTB 50 TF | 1 | ||
| 19 | 12814 | Belt pulley SPC-3-450 | 1 | ||
| 20 | N0000450 | Taper bushing (Taperlock 3535-50) | 1 | ||
| 21 | N0002542 | Belt SPC 3150 | 1 | ||
| 42 | 14360 | Lifting drum frame K-P 5/6 | 1 |
