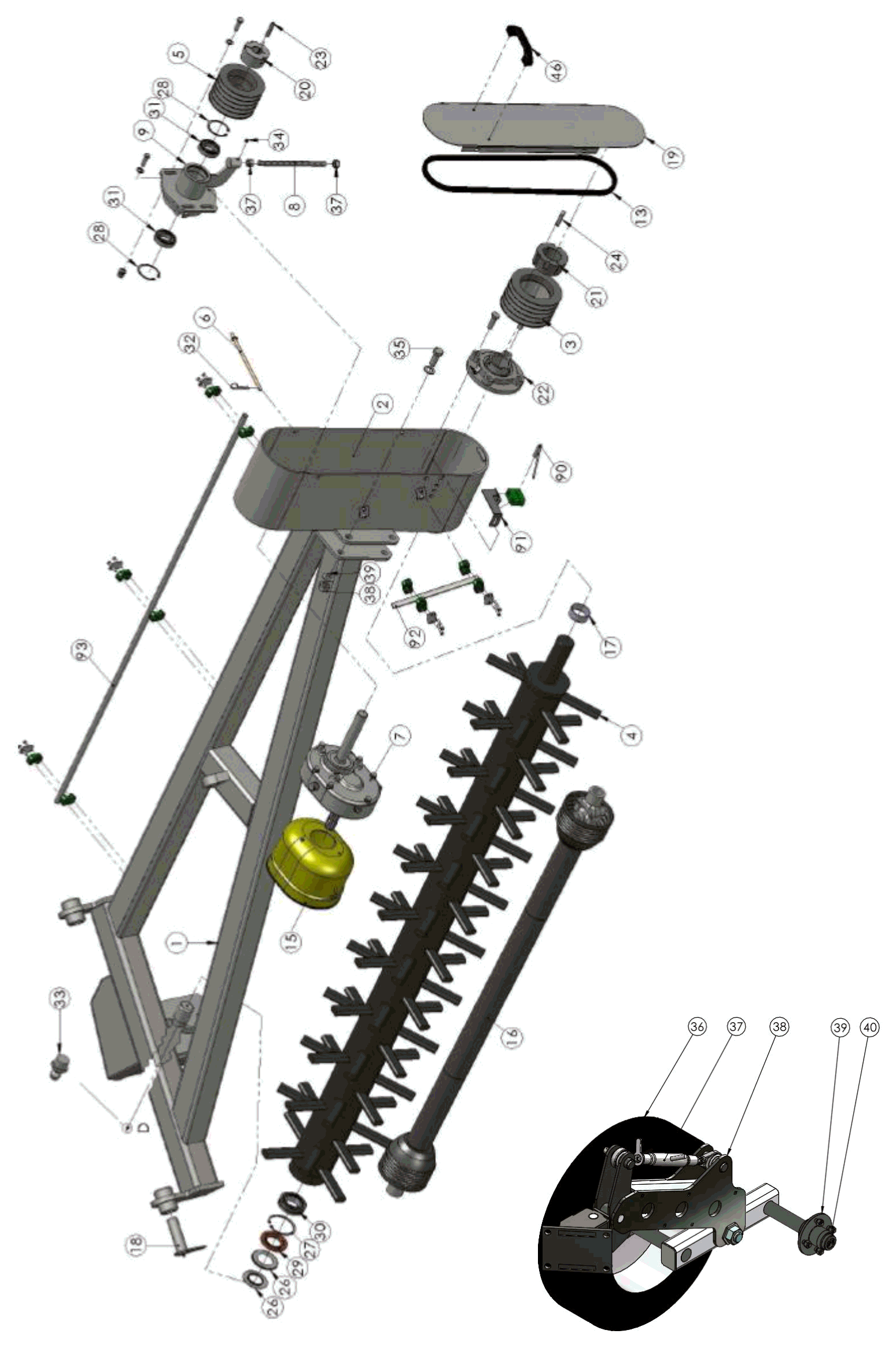

Rysunek złożeniowy
Rotor (zespół rotora)
RotorK-P 4K-P 5K-P 6K-P 7
Przeciągnij, aby przesunąć · szczypnij lub +/− aby przybliżyć · dotknij numeru, aby dodać
Numery i nazwy oryginalne producenta. Cen nie publikujemy — wycena na zapytanie.
| Poz | Nr | Nazwa (PL) | Oryg. (DE) | Ilość | |
|---|---|---|---|---|---|
| 31 | 12599 | Bearing 6207 | 1 | ||
| 28 | 12601 | locating ring D=72 DIN 472 Type J | 1 | ||
| 5 | 10995 | Belt pulley SPB-5-150 K-P 4/5/6 | 1 | ||
| 5 | 17430 | Belt pulley SPB-6-150 K-P 7 | 1 | ||
| 20 | N0000417 | Taper bushing (Taperlock 2517-35) | 1 | ||
| 3 | 10994 | Belt pulley SPB-5-170 K-P 4/5/6 | 1 | ||
| 3 | 16756 | Belt pulley SPB-6-170 K-P 7 | 1 | ||
| 21 | N0000429 | Taper bushing (Taperlock 3020-60) | 1 | ||
| 7 | 12743 | Reversebox | 1 | ||
| 16 | 20723 | PTO shaft K-P 4 L=860 | 1 | ||
| 16 | N0000430 | PTO shaft K-P 6 L=1310 | 1 | ||
| 16 | 12846 | PTO shaft K-P 5 L=1010 | 1 | ||
| 16 | N0000431 | PTO shaft K-P 7 L=1760 | 1 | ||
| 22 | 10917 | Bearing FYC 60 TF | 1 | ||
| 30 | 13685 | Bearing 22210 CC/W33 | 1 | ||
| 27 | 13684 | locating ring D=90 DIN 472 Type J | 1 | ||
| 29 | 13912 | shaft seal 90/50/10 | 1 | ||
| 26 | N0000432 | Z-lamella Z210 | 1 | ||
| 13 | 12757 | Rotor Belt SPB1600 | 1 | ||
| 9 | 16816 | Upper bearing left inc. bearings | 1 | ||
| 9 | 16819 | Upper bearing right inc. bearings | 1 | ||
| 4 | 11385 | Rotor spike S=20 | 1 | ||
| 6 | 11180 | Pin for end box cover | 1 | ||
| 35 | N0002102 | Bolt M16 x 50 + Nut + Washer | 1 | ||
| 17 | 11179 | Rotor outside sleeve L=24 | 1 | ||
| 17 | 23097 | Rotor outside sleeve L=22 | 1 | ||
| 17 | 23098 | Rotor outside sleeve L=26 | 1 | ||
| 17 | 23099 | Rotor outside sleeve L=30 | 1 | ||
| 24 | N0003602 | Key 18x11x65 | 1 | ||
| 24 | N0009046 | Key 14x10x76 | 1 | ||
| 4 | 13168 | Rotor K-P 4 left without bearings | 1 | ||
| 4 | 12256 | Rotor K-P 5 left without bearings | 1 | ||
| 4 | 13176 | Rotor K-P 6 left without bearings | 1 | ||
| 4 | 13613 | Rotor K-P 7 left without bearings | 1 | ||
| 4 | 13169 | Rotor K-P 4 right without bearings | 1 | ||
| 4 | 11393 | Rotor K-P 5 right without bearings | 1 | ||
| 4 | 13174 | Rotor K-P 6 right without bearings | 1 | ||
| 4 | 13609 | Rotor K-P 7 right without bearings | 1 | ||
| 18 | 11612 | Joint pin for rotor inc. Bolt M12 + nut | 1 | ||
| 15 | 10419 | PTO-shaft guard | 1 | ||
| 2 | 10894 | Rotor end box left | 1 | ||
| 2 | 11148 | Rotor end box right | 1 | ||
| 46 | 10980 | Rotor box handle | 1 | ||
| 19 | 16818 | Cover of end box left | 1 | ||
| 19 | 16817 | Cover of end box right | 1 | ||
| 38 | 17395 | Support wheel complete right | 1 | ||
| 38 | 17423 | Support wheel complete left | 1 | ||
| 37 | 10572 | Thrust arm of support wheel | 1 | ||
| 40 | 13366 | Gauge wheel nut M12 | 1 | ||
| 36 | 17371 | Gauge wheel complete 185R14 | 1 | ||
| 39 | 10035 | TVZ Wheel hub 4 bolt | 1 |
